Measuring in the Map Pane #

Use the Map Pane for taking general 2D distance and area measurements.

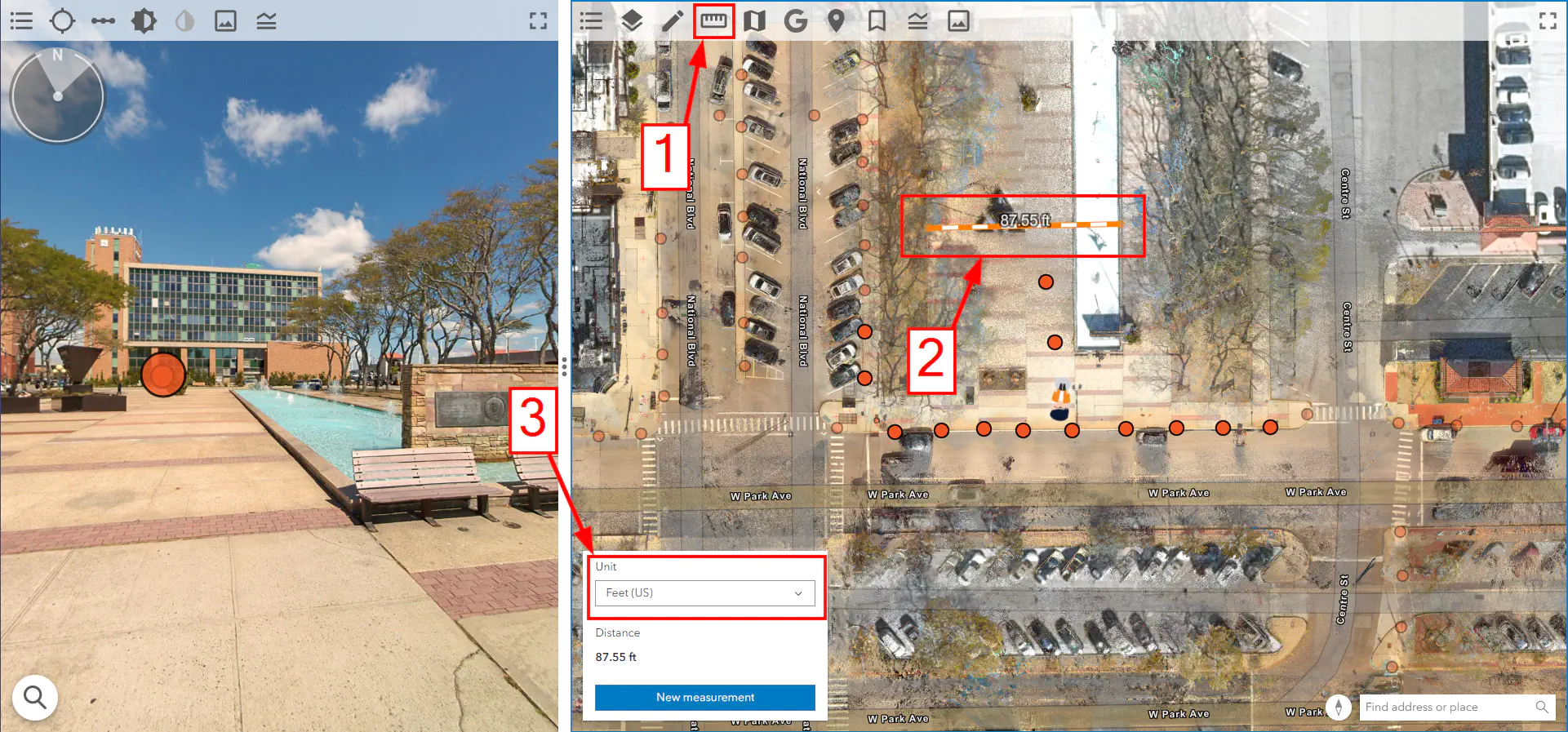

To measure in the Map Pane, use the Measuring Icon [1] in the map pane toolbar. Select from either making a linear measurement or measuring an area . Click on the map to start the measurement [2] and double-click to finish. Adjust the finished measurement by using the orange circles at the endpoints. To adjust the measuring unit [3] click the drop-down and select the desired unit.

To walk through the types of measurements that can be done in the map pane, visit the Map Pane Measurement Tool Feature Reference page.
